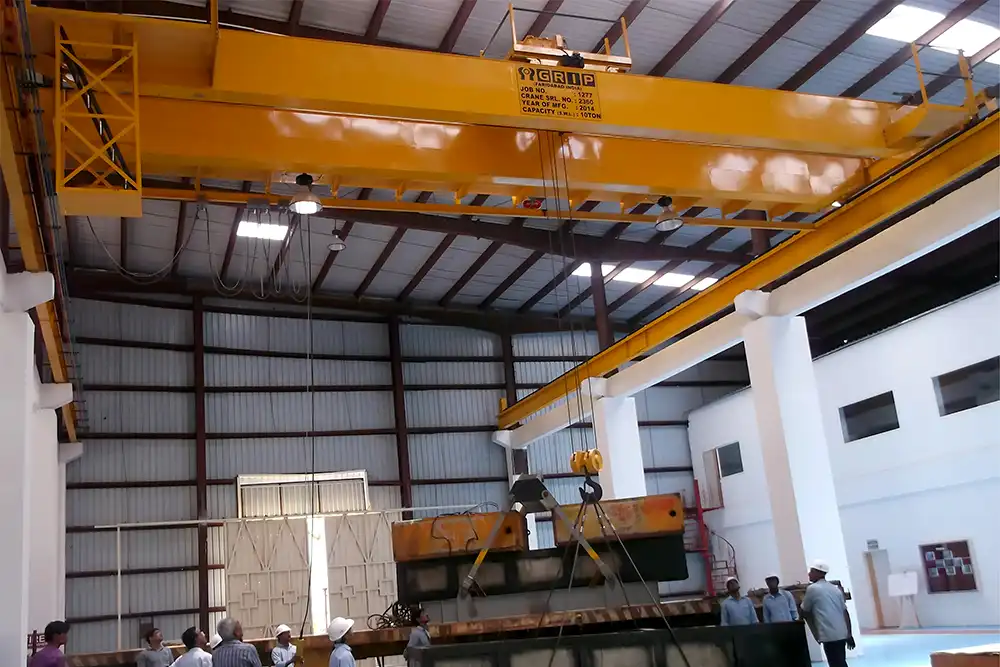

EOT Cranes

GRIP Engineers delivers robust EOT Cranes designed to IS and global standards, ensuring reliable, efficient performance for light to heavy-duty industries.

Overview

‘GRIP’ EOT Cranes are individually designed and engineered to suit customer specifications. Every detail is carefully studied before designing to ensure optimum performance, structural stability, and cost efficiency. Proper stress analysis is carried out to minimize crane weight, wheel loads, headroom, and clearances—ultimately reducing building and operational costs.

With the use of modern CAD technology, ‘GRIP’ ensures precise and faster availability of design information. Our cranes are available in a wide range of capacities, up to 200 tons, catering to diverse industrial needs.

Design

‘GRIP’ cranes are designed in accordance with:

IS: 807, IS: 3938, IS: 3177, IS: 4137, IPSS
International standards such as CMAA, DIN, FEM & BS (on request)

Duty Classifications

‘GRIP’ EOT Cranes are manufactured for multiple duty classes:

Class I (M3): Light Duty – For maintenance, warehouse & assembly operations
Class II (M5): Medium Duty – For general engineering & machine shops
Class III (M7): Heavy Duty – For heavy machine shops, fabrication units, paper mills, etc.
Class IV (M8): Extra Heavy Duty – For continuous operations in steel plants & other heavy engineering industries, including outdoor duty cranes

Crane Bridge

Types: Plate Box, Rolled Steel Joist, Compound Beams, Castellated, or Lattice Construction
Main butt-weld joints of the web are radiographically tested for maximum reliability
Fabricated using IS: 2062 grade material for superior strength and durability

Gear Box

Totally enclosed, oil-immersed reduction gearboxes
Helical hardened & ground gears made from alloy steel forgings
Supported on antifriction ball/roller bearings for smooth operation & shock load resistance

Wheel Assemblies

Straight treaded, double-flanged wheels made from forged steel
Mounted on self-aligning spherical roller bearings
‘L’ type wheel blocks for easy maintenance
Open geared wheel assemblies also available on request

Micro Speed Gear Boxes

Micro-speed operations for hoist, trolley, or crane at 5% to 20% of main speed
Achieved through VVVF (Variable Voltage Variable Frequency) drives
Alternative systems available: Planetary gearing with pony motor & separate brake, or Dual Pole Motors

Couplings

Flexible gear couplings between gearbox and rope drum for misalignment protection
Geared couplings provided between gearbox and wheel in travel drives
Direct positive drives using geared motors available

Brakes

Fail-safe electro-hydraulic A.C. thruster brakes (standard)
ACEM/DCEM shoe brakes on request
DCEM disc brakes with geared motor positive drives

L.T. Drive

Independent twin drives provided as standard for smooth crane movement
For high-speed cranes, drives on all four wheels available

Motors

Totally enclosed fan-cooled (TEFC), S-4 crane duty motors
40% CDF, 150 starts/hr. capacity
Built as per IS:325 / IEC-60034 (Part 1) from reputed makes
Voltage range 380V to 480V for international compatibility

Control Options

Pendant control from floor
Master controller from cabin
Radio remote control for advanced operations
